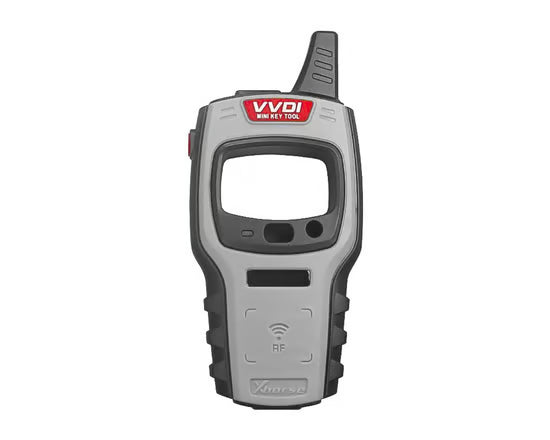

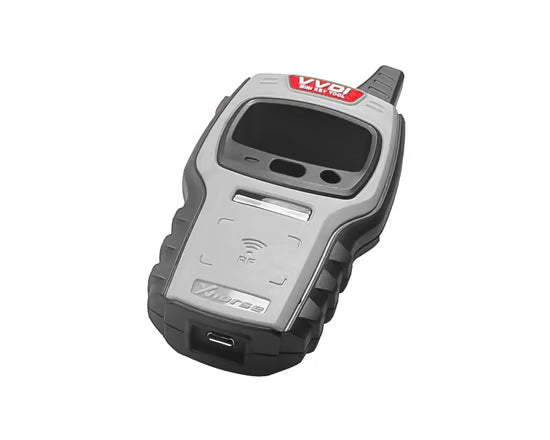

Xhorse VVDI Mini Key Tool Device

What's new in Xhorse VVDI Key Tool Mini?

Power up super fast!

Read chip super fast!

Test frequency super-fast!

Test frequency distance: 30 cm!

Based on mobile App via Bluetooth!

3 colors optional: red, green, orange. Color sent randomly.

Comprehensive functions, support remote and chip programming.

Integrated most existing mainstream data for remote and chip.

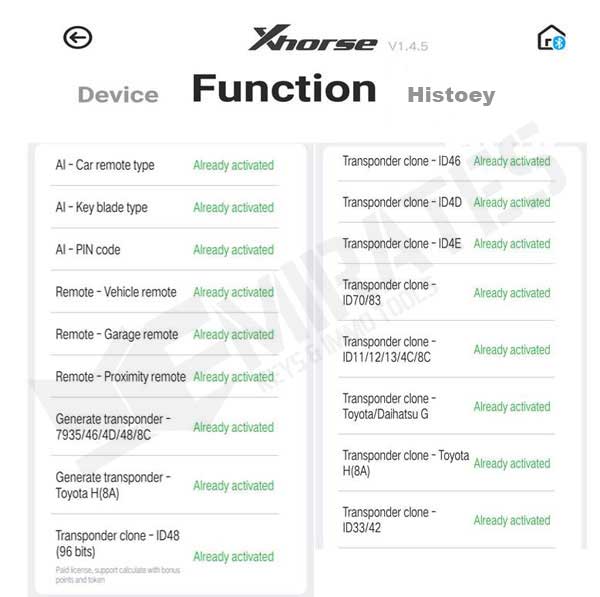

Mini Key Tool Function Introduction:

Main Functions:

Remote Clone

Garage Remote Generation

Transponder Clone

Generate Transponder

Frequency Test

Remote Renew

IC/ID Clone

Special Functions:

It has ability to clone ID4C/4D, 46, ID70, ID72 and can adapt to future updates.

It can also generate remotes for various car brands by connecting the mini key tool with the VVDI Mobile App available on both Android & iOS mobiles.

Transponder cloning:

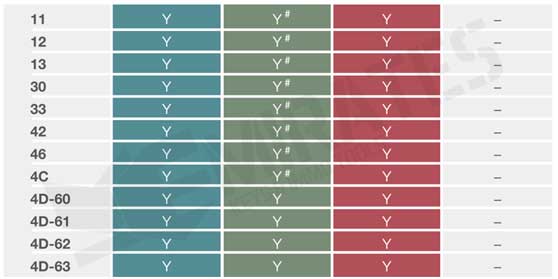

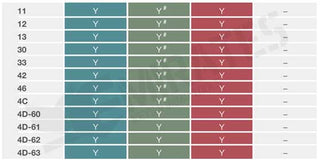

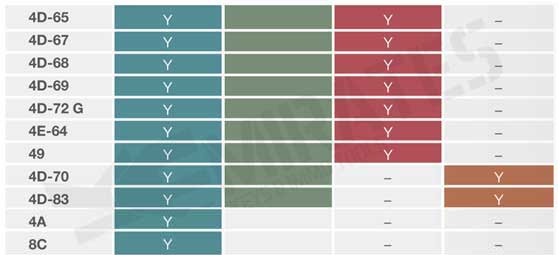

Supports 46 42 4D 4E 11 33 8C 83 etc transponder cloning

Transponder Generating:

Support TP transponder & parts of special transponder

More than 700 vehicle models, reduce the stock of transponders efficiently.

Remote Cloning:

Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

Remote Generate:

Support 128 brands, over 2000 vehicle models. Generate more abundant and thorough key pictures, transponder types, key blanks and remote matching data.

Frequency Test:

Support the power test within the range of 300-450Mhz.

Garage Remote Generating:

Support more than 100 types

Special Functions:

Remote Renew

Ignition switch coil signal detection

Unlock Toyota smart key

VVDI smart key clone

VVDI super transponder

ID/IC clone

How to combine VVDI MINI KEY TOOL/DOLPHIN/KEY TOOL?

Login Xhorse APP, connect device by Bluetooth, enter device & History to combine device.

How to Update Xhorse VVDI Mini Key Tool?

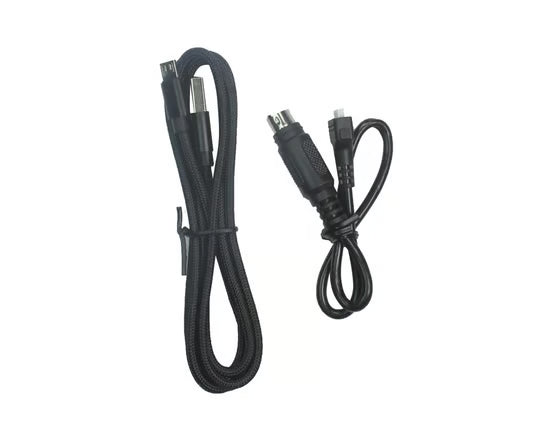

Connect Xhorse MINI Key Tool with computer via USB cable.

Start Xhorse update kit software, and choose VVDI Lark, click find device.

After find device, click upgrade.

Finish.

Update Xhorse app VVDI MINI Key Tool database.

Start VVDI MINI Key Tool, connect with Xhorse app via Bluetooth.
