TMPRO Software module 9

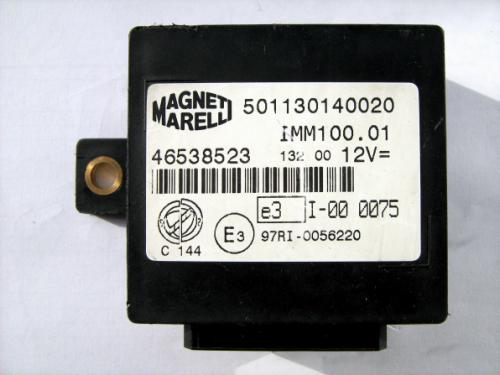

– Fiat, Lancia IMM100.01 immobox Marelli
Memory device is Motorola MCU MC68HC908AZ32 QFP64 package.
Expected file size is 512 bytes.
Use Megamos Crypto or Silca T6 – JMA TP08 or TS48 or CN6 or KD48 transponder.
Software shows 5-digit PIN code.
Written transponder is ready programmed to start the vehicle.
Memory device is Motorola MCU MC68HC908AZ32 QFP64 package.
Expected file size is 512 bytes.
Use Megamos Crypto or Silca T6 – JMA TP08 or TS48 or CN6 or KD48 transponder.
Software shows 5-digit PIN code.
Written transponder is ready programmed to start the vehicle.
Vehicles equipped with this unit:
Lancia: Lybra
Fiat: Multipla
Lancia: Lybra
Fiat: Multipla
