TMPRO Software module 31

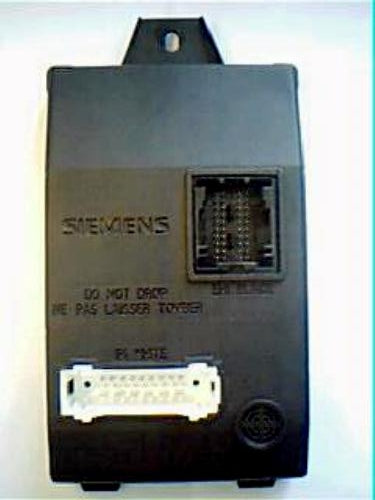

– Renault UCH Siemens
This software can be used in 2 ways:
1.If you don`t know 12-digit PIN code:Memory device is serial eeprom 93c66 or 95c040 both SMD8 package. Expected file size is 512 bytes.
Module calculates PIN code.
Use PCF7936 or Silca T14 – JMA TP12 transponder.
Written transponder have to be matched with car using diagnostic device.
2.If you know 12-digit PIN code:Start software and select module.
Insert PCF7936 or Silca T14 – JMA TP12 transponder.Press PROG button.
Software prepares transponder.
Match prepared transponder with car using diagnostic device and PIN code.
Vehicles equipped with this unit:
Renault: Clio Symbol(2001-2006)
Dacia: Logan, Logan MPV
