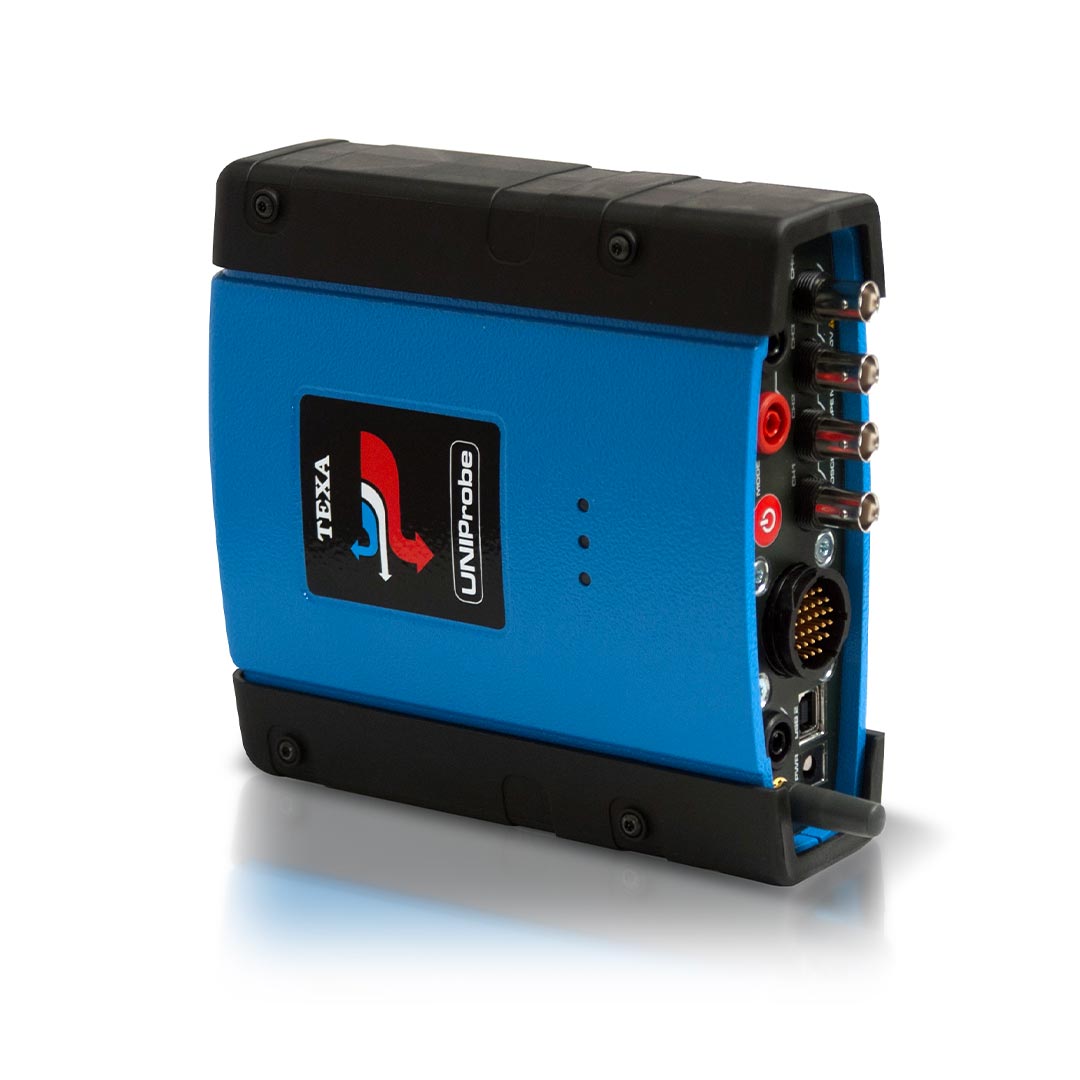

UNIProbe includes 6 different instruments within the same device, including a four-channel independent oscilloscope capable of performing precise and professional measurements with voltage probes and current clamps.
Technical Specifications
SUPPLY VOLTAGE
8 – 32 VDC
INTERNAL BATTERY CHARGING VOLTAGE
10 – 32 VDC, internal 7.4V, 1Ah lithium battery
INTERNAL BATTERY LIFE
up to 5 hours
MAXIMUM ABSORPTION
1.2 A at 12 V
ENVIRONMENT
Operating temperature: 0 ÷ +45°C
Storage temperature: – 20 °C ÷ 60 °C
Storage and operating humidity: 10 % ÷ 80 % without condensation
DIMENSIONS
155x178x55 mm (excluding Bluetooth antenna)
WEIGHT
1.2 kg.
OSCILLOSCOPE:
CHANNELS
4 independent input channels with 10 MHz analog bandwidth (-3 dB). Sampling rate 20 MSample/sec 10 bit with 1 or 2 active channels, 10 MSample/sec 10 bit with 3 or 4 active channels.
MAX INPUT VOLTAGE
+/- 50 Vmax, AC or DC coupling.
VERTICAL SCALE OF EACH CHANNEL
from 20 mV/Div to 50 V/Div
HORIZONTAL SCALE
from 500 ns/Div to 5s/Div
TRIGGER
source CH1, CH2, CH3, CH4, selectable, Trigger delay.
DISPLAY MODE
Normal, Auto, Single shot
MEASUREMENT OF THE FOLLOWING QUANTITIES
frequency, period, RMS, Vmax, Vmin.
MULTIMETER:
GALVANIC ISOLATION
up to 1 KV, for safe measurements
VOLTAGE MEASUREMENTS
Maximum measurable voltage ± 400VDC, input impedance 4.7 MΩ, 3-digit resolution. 3 ranges are available with automatic or manual scale selection.
RESISTANCE MEASUREMENTS
3 ranges, automatic or manual selection of scales 0-1000 Ω, 1-100 kΩ, 100 – 10 MΩ, resolution
CURRENT MEASUREMENTS
using TEXA “BICOR” series clamp meters
TNET FUNCTION
Fault finding on ISO11898, ISO11519 CAN networks
BPP FUNCTION
: Troubleshooting starting systems. DC voltage measurements up to 50VDC.
ELECTROMAGNETIC COMPATIBILITY
ETSI EN 301 489-17 V 1.2.1 EN 6/326/1
