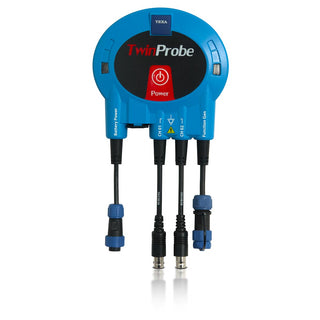

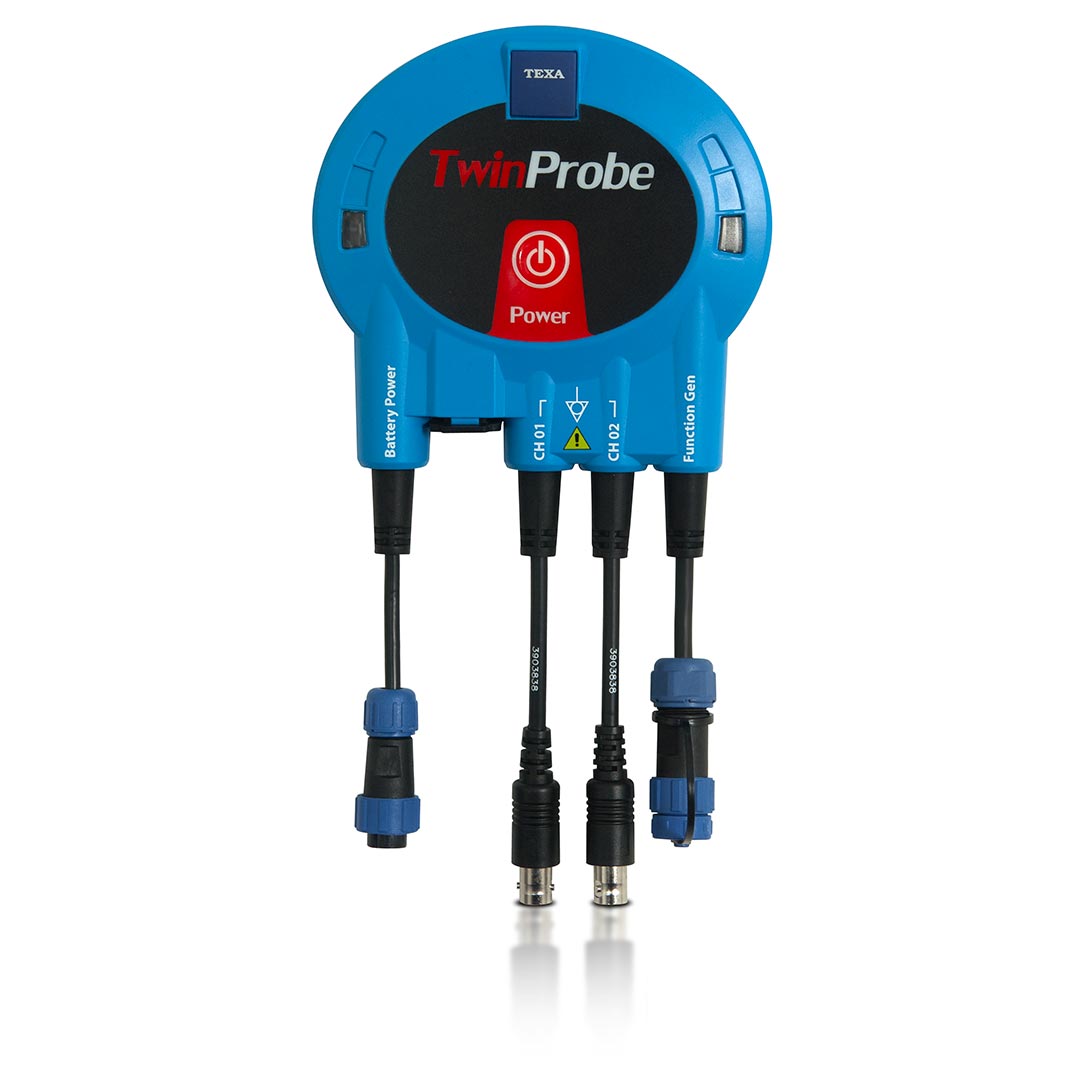

TwinProbe is a practical oscilloscope with two independent analog channels with inputs up to ± 200V equipped with SIV (Signal information Viewing) function for the interpretation of the detected signal.
Technical Specifications
POWER SUPPLY
8 V – 35 V DC max
STAND-BY CONSUMPTION
150 mA at 12 V
BATTERY CHARGING CONSUMPTION IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS
480 mA at 12 V
INTERNAL BATTERY LIFE IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS
: approximately 1 hour and 45 minutes
ENVIRONMENT
Operating temperature: 0 ÷ +45°C
Storage temperature: – 20 °C ÷ 60 °C
Operating relative humidity: 10% – 80%
DIMENSIONS (WITH CABLES)
125 x 130 x 27 mm (135 x 130 x 27 mm)
WEIGHT
460 g.
OSCILLOSCOPE:
2 analog channels
(CH01, CH02)
CONNECT TO HOST
Via USB2, USB1 or Wireless Bluetooth.
TRIGGER
CH01 or CH02
A/D Conversion:
Two 10-bit converters.
40 MS/s with one active channel.
20 MS/s per channel with two active channels.
DISPLAY MODES
Normal, Auto, Single shot.
COMMON MODE
AC, DC
MAX INPUT VOLTAGE
± 200 V
ACCESSORY FUNCTIONS
Trigger delay, frequency calculation, Vmedia, Vmax, Vmin, Period, Scale setting for current clamps.
SIGNAL GENERATOR:
PWM CURRENT DRIVE
Maximum continuous current: 5 A at 12 V Maximum PWM frequency: 50 kHz Operating voltage: 5÷30 V Duty Cycle resolution: 1% Frequency resolution: 0.1 Hz
PWM 5V:
Maximum continuous OUTPUT current: 20mA Maximum PWM frequency: 50kHz OUTPUT voltage: 0-5V ± 5% Duty cycle resolution: 1% Frequency resolution: 0.1Hz
TwinProbe is a practical oscilloscope with two independent analog channels with inputs up to ± 200V equipped with SIV (Signal information Viewing) function for the interpretation of the detected signal.
Technical Specifications
POWER SUPPLY
8 V – 35 V DC max
STAND-BY CONSUMPTION
150 mA at 12 V
BATTERY CHARGING CONSUMPTION IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS
480 mA at 12 V
INTERNAL BATTERY LIFE IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS
: approximately 1 hour and 45 minutes
ENVIRONMENT
Operating temperature: 0 ÷ +45°C
Storage temperature: – 20 °C ÷ 60 °C
Operating relative humidity: 10% – 80%
DIMENSIONS (WITH CABLES)
125 x 130 x 27 mm (135 x 130 x 27 mm)
WEIGHT
460 g.
OSCILLOSCOPE:
2 analog channels
(CH01, CH02)
CONNECT TO HOST
Via USB2, USB1 or Wireless Bluetooth.
TRIGGER
CH01 or CH02
A/D Conversion:
Two 10-bit converters.
40 MS/s with one active channel.
20 MS/s per channel with two active channels.
DISPLAY MODES
Normal, Auto, Single shot.
COMMON MODE
AC, DC
MAX INPUT VOLTAGE
± 200 V
ACCESSORY FUNCTIONS
Trigger delay, frequency calculation, Vmedia, Vmax, Vmin, Period, Scale setting for current clamps.
SIGNAL GENERATOR:
PWM CURRENT DRIVE
Maximum continuous current: 5 A at 12 V Maximum PWM frequency: 50 kHz Operating voltage: 5÷30 V Duty Cycle resolution: 1% Frequency resolution: 0.1 Hz
PWM 5V:
Maximum continuous OUTPUT current: 20mA Maximum PWM frequency: 50kHz OUTPUT voltage: 0-5V ± 5% Duty cycle resolution: 1% Frequency resolution: 0.1Hz
