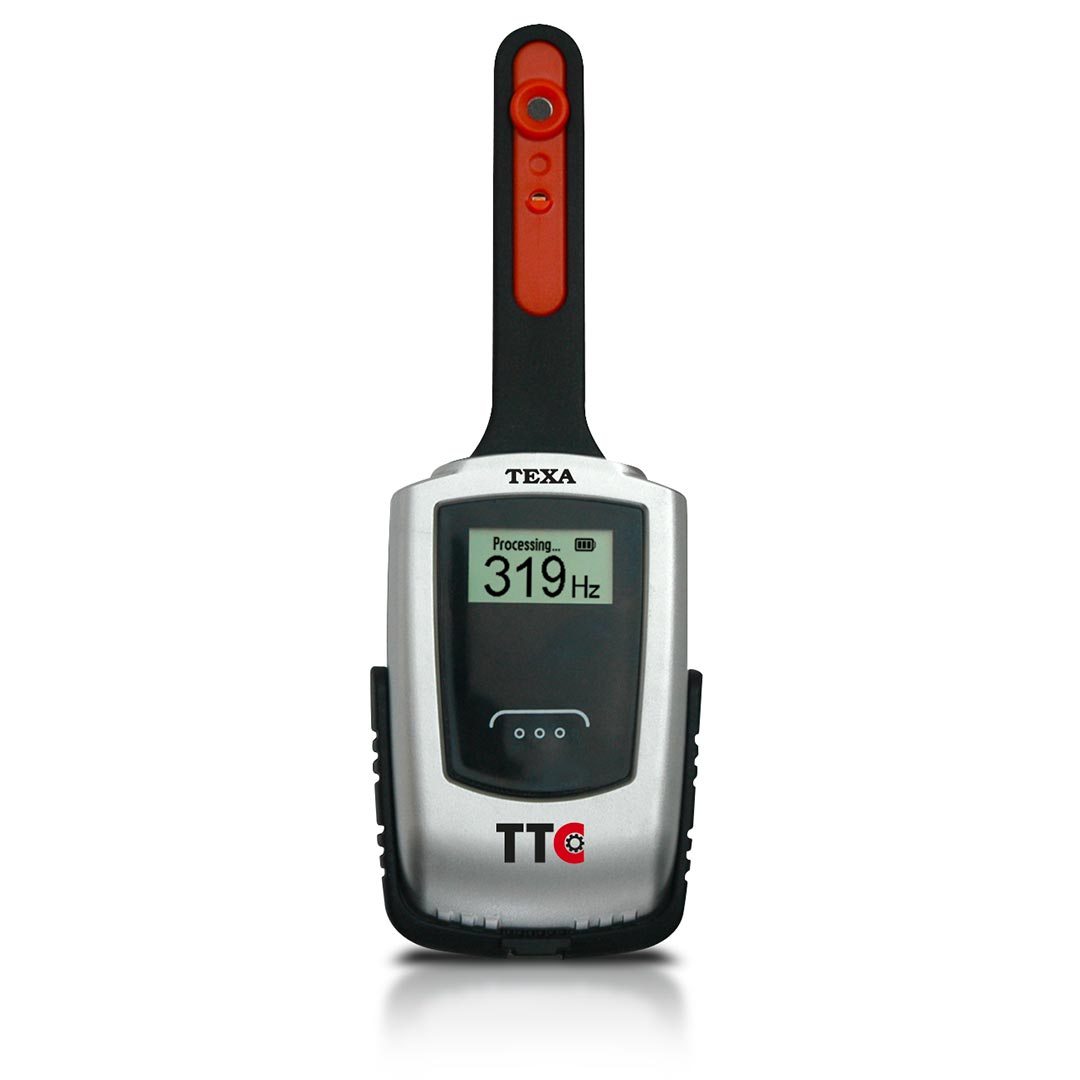

TTC is a device that checks the correct tensioning of the engine timing belt , engineered following Ducati specifications and specifically designed for the Borgo Panigale Group's motorcycles.
Technical Specifications
32-bit ARM Microcontroller
Backlit LCD DISPLAY
INTERNAL BATTERY
Li-Io 3.7V 1000mA/h
Charging
from USB port, max consumption 470 mA
AUTONOMY
6 hours in continuous measurement
RESOLUTION
3 Hz
ACCURACY
± 1.5 Hz
ENVIRONMENT
Operating temperature: – 10 °C ÷ 40 °C
Storage temperature: – 20 °C ÷ 60 °C
Temperature with battery charging: 0 °C ÷ 45 °C
Storage and operating humidity: 10% ÷ 80% non-condensing
DIMENSIONS
202.7×70.6×31.3 mm
WEIGHT
300 g
