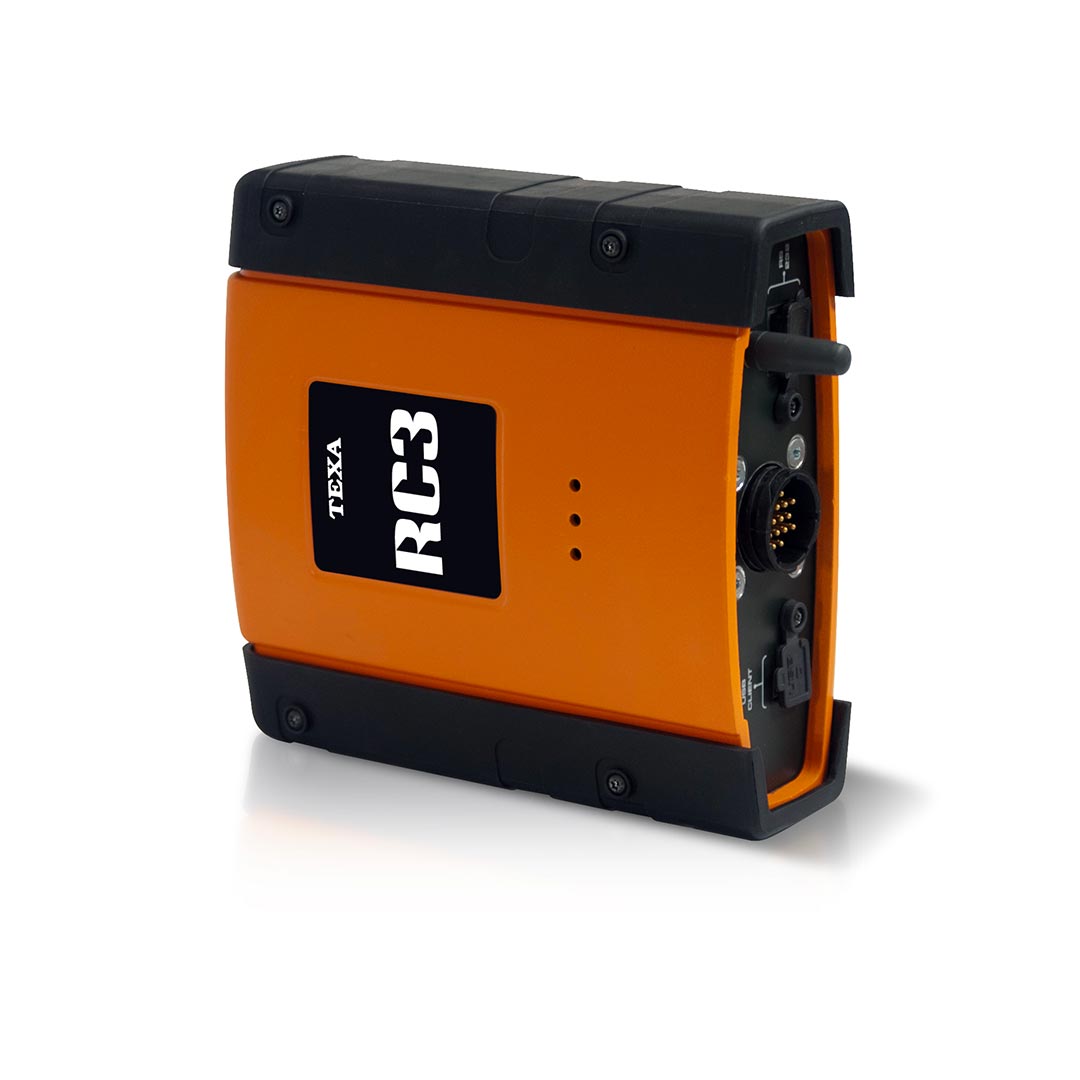

To measure engine rpm and temperature, TEXA has developed the RC3 , a revolutionary device that also functions as a scan tool. This allows the mechanic to use a single tool to perform both tests.
Technical Specifications
SYSTEM PROCESSOR
MB90F591 16MHz
SERIAL CONNECTION
1 USB 1.1 connection
1 standard RS232 connection
EXTERNAL POWER SUPPLY
8 ÷ 32 Volts
WIRELESS CONNECTION
Bluetooth 1.2 technology
ANALOGUE DETECTION OF PETROL AND DIESEL FROM VEHICLE BATTERY
Management of 12VDC and 24VDC systems
ANALOGUE GASOLINE DETECTION
Induction clamp
DIESEL ANALOGUE DETECTION
Piezoelectric clamp
EOBD DETECTION
ISO9141-2; ISO14230; SAE J1850 PWM; SAE J1850 VPW; CAN ISO11898
ENVIRONMENT
Operating temperature: -5°C ÷ +40°C
Operating and operating humidity: 10% ÷ 80% without condensation
Storage temperature: -20°C ÷ +60°C
DIMENSIONS
155x162x63 mm
WEIGHT
800 g
