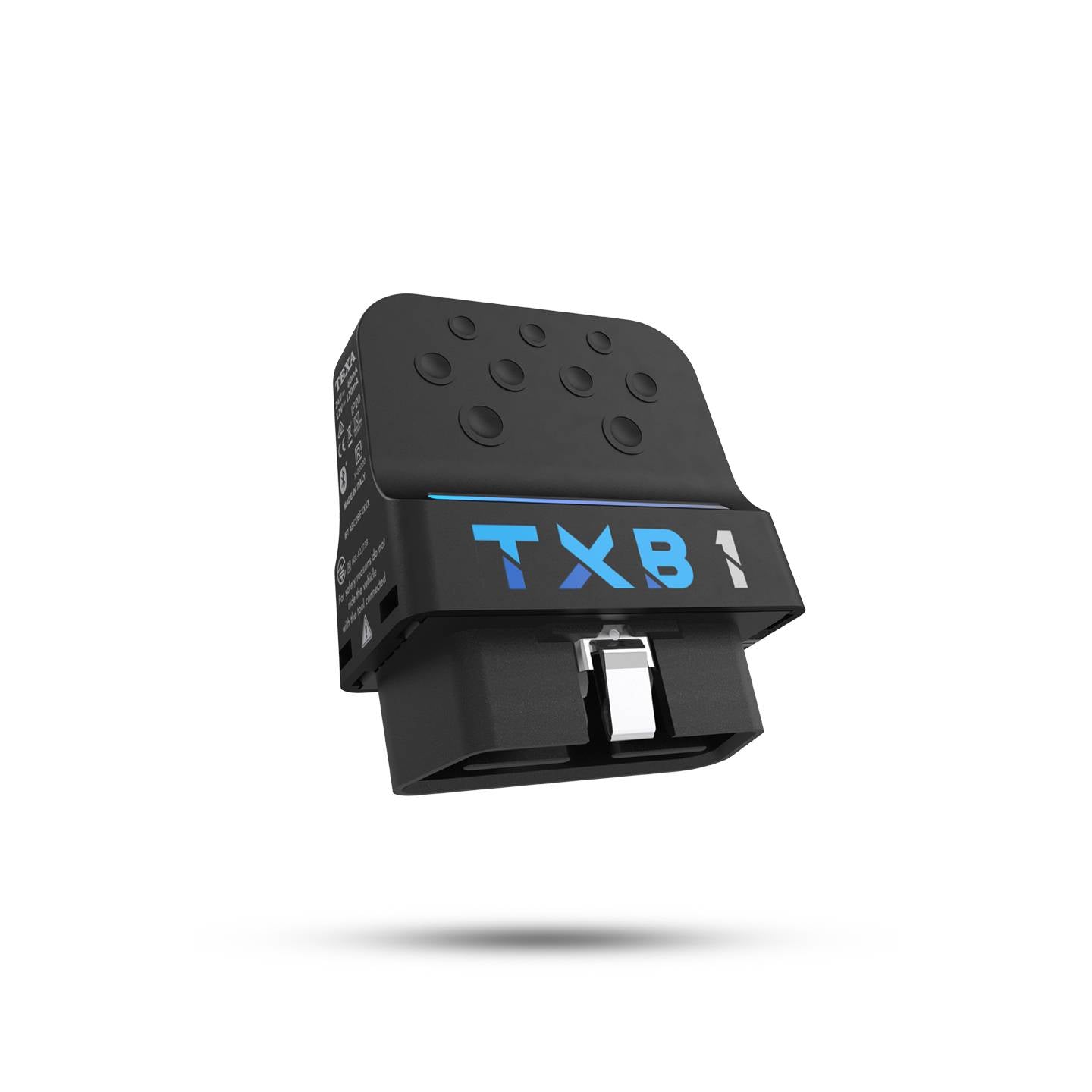

Diagnostic interface dedicated to diagnostic operations on outboard engines and personal watercraft.
Its design aims to ensure compatibility with a wide range of engines, offering a versatile and flexible solution for the maintenance and repair needs of specialized technicians. Finally, it integrates advanced technology that allows recording of diagnostic tests even on the move*.
Technical Specifications
MODEL
NAVIGATOR TXB 1
MANUFACTURER
TEXA SpA
ARM Cortex M4 PROCESSOR (STM32F439ZIY6)
MEMORY
• SDRAM: 8 MB
• NAND Flash: 4 GB
VEHICLE BATTERY
Management of 12 Vdc and 24 Vdc systems
EXTERNAL POWER SUPPLY
12 / 24 Vdc
WIRELESS CONNECTION
Bluetooth Classic (2.1)
OPERATING BAND
2400 – 2483.5 MHz
MAXIMUM TRANSMITTED RADIO FREQUENCY POWER
4 dBm
ISO15031-03 OBD DIAGNOSTIC CONNECTOR
for 24V systems
SUPPORTED AUTOMOTIVE BUS TYPES
• 2 CAN HS channels connected to OBD pins 3-11, 6-14, individually enabled
• 1 ISO9141-2, ISO14230 K-Line transceiver with 60mA current protection connected to pins 2, 7, 8, 9
• 1 ISO9141-2, ISO14230 L-Line transceiver with 60mA current protection connected to pin 15
VISUAL SIGNALS
• Two-color green – red LED x1
• Blue LED x1
CONSUMPTION AT 12 V
< 120 mA
CONSUMPTION AT 24 V
< 60 mA
OPERATING TEMPERATURE
0 ÷ 50 °C
STORAGE TEMPERATURE
– 20 ÷ 60 °C
OPERATING AND WORKING HUMIDITY
10 ÷ 80 % without condensation
WEIGHT
15 g
