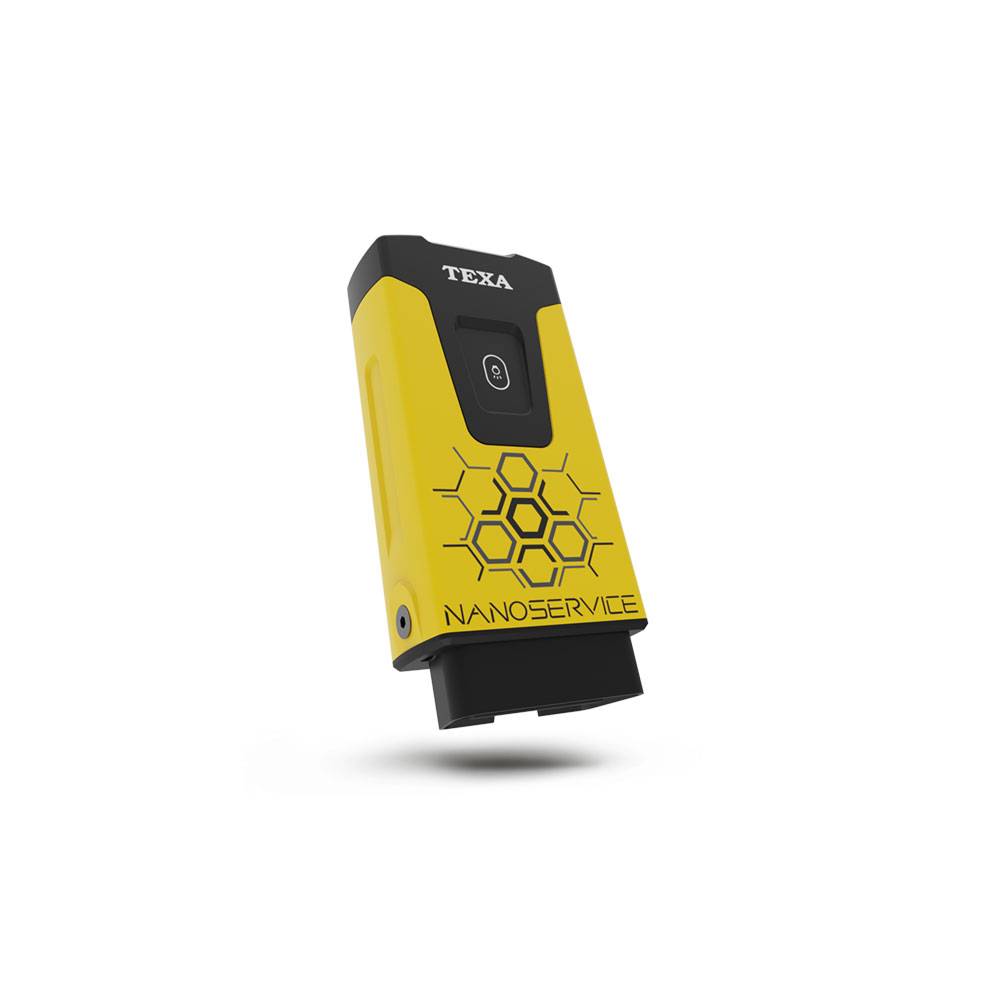

Small, robust, lightweight and ergonomic, NAVIGATOR NANO SERVICE is the vehicle interface developed specifically for diagnostic activities on cars and light commercial vehicles relating to wheel service and the Fast Fit area.
The latest-generation processor, 8 GB of memory , and advanced connectivity—including Bluetooth® 5.0 —make this instrument particularly high-performance. It is also compatible with CAN FD communication protocols , supporting simultaneous management of three channels, and DoIP .
For this one-of-a-kind VCI, IDC6 FAST FIT was created , a software license that includes all the essential operations related to CAR light mechanics, including ADAS calibrations.
NAVIGATOR NANO SERVICE is also supplied as standard in combination with the
E-DIAG CHARGER device .
Technical Specifications
SRAM: 16 MBits organized in 1024K x 16 bits
eMMC: 8 GByte on an 8-bit bus
External Flash memory: 16 Mbit NOR flash organized as 1M x 16bit
Internal battery:
Vehicle battery: 12 Vdc system management
Nominal supply voltage: OBD: 12 V *
Wireless communication: Bluetooth 5.0 class1
Operating frequency band: 2402 … 2480 MHz
Maximum transmitted radio frequency power: 10 dBm
Wired connection:
• Virtual COM Via USB Full Speed
• USB C: 5 V *
Electronic switch: 2-way, 13 independent positions
Diagnostic connector: OBD
• Blink codes
• K, L (with 60 mA current protection) ISO9141-2, ISO14230
• CAN_FD 11898-2:2016 3 channels
• CAN ISO 11898-3
• CAN SAE J2411 Single Wire
• SAE J1850 PWM and VPW
• Ethernet DoIP ISO13400-3
Power connector: OBD
User interface:
• RGB LED x4
• Buzzer
Power consumption: 12 V *, 250 mA
Operating temperature: 0 °C … 40 °C
Storage temperature: -20 °C … 60 °C
Battery charging temperature: 0 °C … 45 °C
Operating and storage humidity: 10% … 80% non-condensing
Dimensions: 99.49x49x23
Weight: 72 g
Environmental conditions:
• Use: indoor and outdoor
• Altitude: < 2000 m
• Supply voltage fluctuations: ±10%
• Overvoltage category: II
• Pollution degree: 2
• Maximum relative humidity 80% for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Directives:
• RED 2014/53/EU
• RoHS 2011/65/EU and Delegated Directive 2015/863/EU
• Radio Equipment Regulation 2017 No. 1206
• RoHS Regulation 2012 No. 3032
• ETSI EN 301 489-1
• ETSI EN 301 489-17
Electrical safety:
• EN 62368-1
• EN 62368-3
• EN 62311
