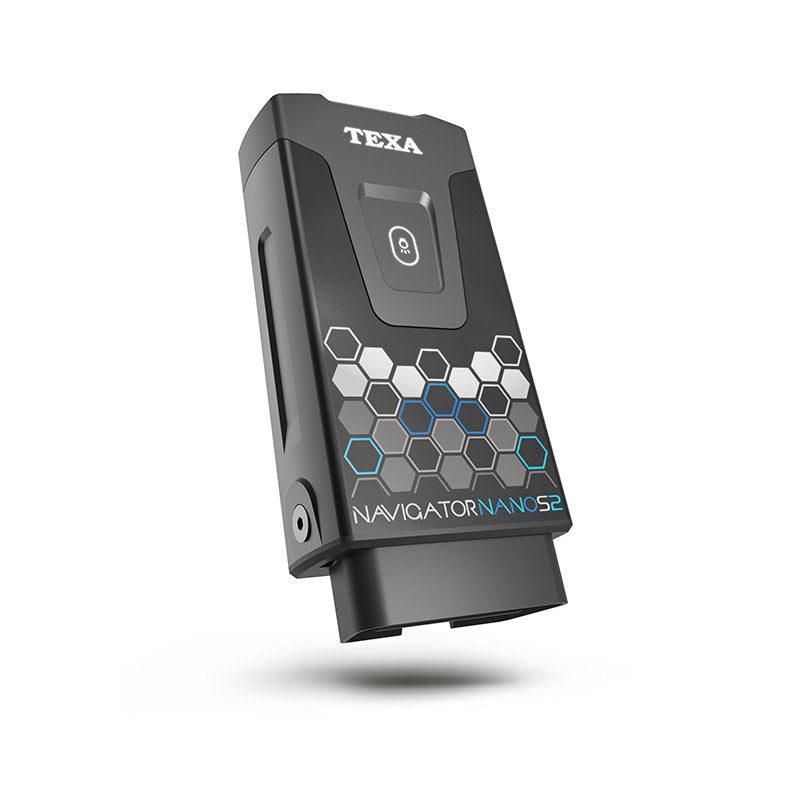

Small, robust, light and ergonomic, it was developed specifically for diagnostic operations in the CAR sector .
Everything in the NAVIGATOR NANO S 2 has been carefully designed and built to fully meet the needs of the modern workshop, resulting in an interface full of innovative technical details.
Just think of the new latest-generation processor , the 8 GB memory and advanced connectivity that includes a Bluetooth 5.0 module .
Furthermore, NAVIGATOR NANO S 2 is compatible with the CAN FD communication protocols , supporting the simultaneous management of 3 channels, and DoIP.
Technical Specifications
Processor : CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM
SRAM : 16 MBits organized in 1024K x 16 bits
eMMC : 8 GByte on an 8-bit bus
External Flash Memory : 16 Mbits NOR flash organized as 1M x 16bit
Internal battery : Lithium-polymer, single cell
3.7 V 130 mA/h
LP401429-PCM-LD
Vehicle battery : 12 Vdc systems management
Rated supply voltage : OBD: 12V *
Wireless communication : Bluetooth 5.0 class1
Operating frequency band : 2402 … 2480 MHz
Maximum transmitted radio frequency power : 10 dBm
Wired connection :
• Virtual COM Via USB Full Speed
• USB C: 5 V *
Electronic switch : 2-way, 13 independent positions
Diagnostic connector : OBD
Supported protocols :
• Blink codes
• K, L (with 60 mA current protection)
ISO9141-2, ISO14230
• CAN_FD 11898-2:2016 3 channels
• CAN ISO 11898-3
• CAN SAE J2411 Single Wire
• SAE J1850 PWM and VPW
• Ethernet DoIP ISO13400-3
Power connector : OBD
User interface :
• RGB LED x4
• Buzzer
Consumption : 12 V DC, 250 mA
Operating temperature : 0 °C … 40 °C
Storage temperature : -20 °C … 60 °C
Battery charging temperature : 0 °C … 45 °C
Weight : 72 g
Environmental conditions :
• Use: indoor and outdoor
• Altitude: < 2000 m
• Supply voltage fluctuations: ±10%
• Overvoltage category: II
• Pollution degree: 2
• Maximum relative humidity 80% for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Directives :
RED 2014/53/EU
RoHS 2011/65/EU and Delegated Directive 2015/863/EU
Regulations :
Radio Equipment Regulation 2017 No. 1206
RoHS Regulation 2012 No. 3032
Electromagnetic compatibility :
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems : ETSI EN 300 328
Electrical safety :
EN 62368-1
EN 62368-3
EN 62311
