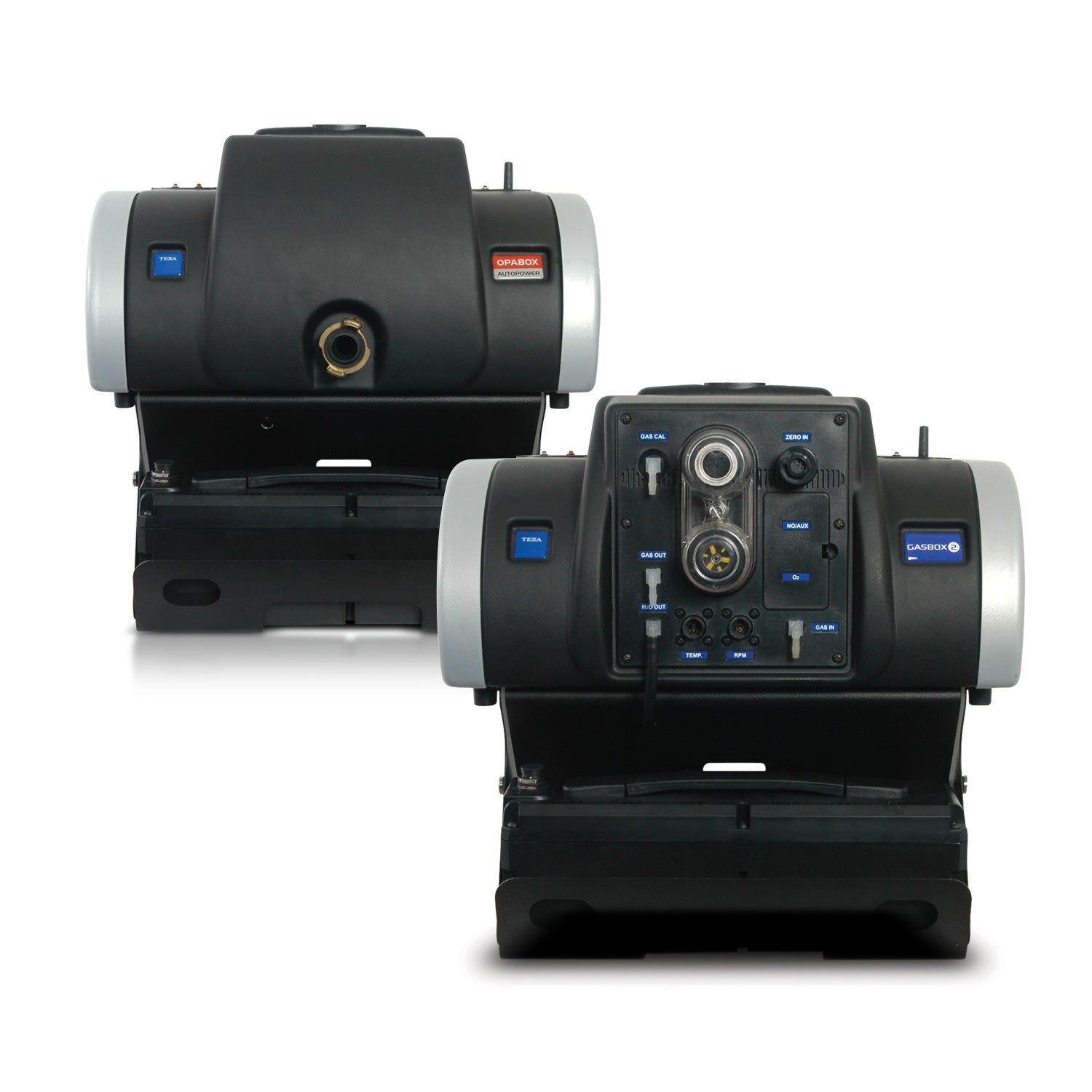

GASBOX2 is the updated version of the exhaust gas analyser for petrol, LPG and methane engines equipped with the analysis chamber designed by TEXA, now made even more performing.
To ensure better usage dynamics, in addition to the traditional socket for direct connection to the electrical grid, GASBOX2 can be combined with Power Pack , a practical removable and separately rechargeable module. This solution allows you to have one or more charged batteries always ready for use.
Technical Specifications
GASBOX2
DIMENSIONS
460 x 200 x 250 mm
WEIGHT
6.5 kg (with Trolley and Power Pack 15 kg)
POWER SUPPLY
from 220 V – 50 Hz mains power supply
from Power Pack 2 lead-acid batteries of 12 V 9 A/h; Max absorption: 80 W
Standard RS232 SERIAL OUTPUT
Bluetooth WIRELESS OUTPUTS
ZEROING AND CALIBRATION
Electronic and automatic
NDIR TECHNOLOGY
Continuous and automatic condensation discharge
RESPONSE TIME
15 seconds
HEATING TIME
Max. 100 seconds
OPABOX Autopower
DIMENSIONS
460 x 200 x 250 mm
WEIGHT
6.5 Kg (with Trolley and Power Pack 15 kg)
POWER SUPPLY
from 220 V – 50 Hz mains power supply
from Power Pack 2 lead-acid batteries of 12 V 9 A/h; Max absorption: 80 W
Standard RS232 SERIAL OUTPUT
Bluetooth WIRELESS OUTPUTS
ZEROING AND CALIBRATION
Electronic and automatic
TECHNOLOGY
Green LED Diode
CHAMBER LENGTH
200 mm
TEMPERATURE
75°C
