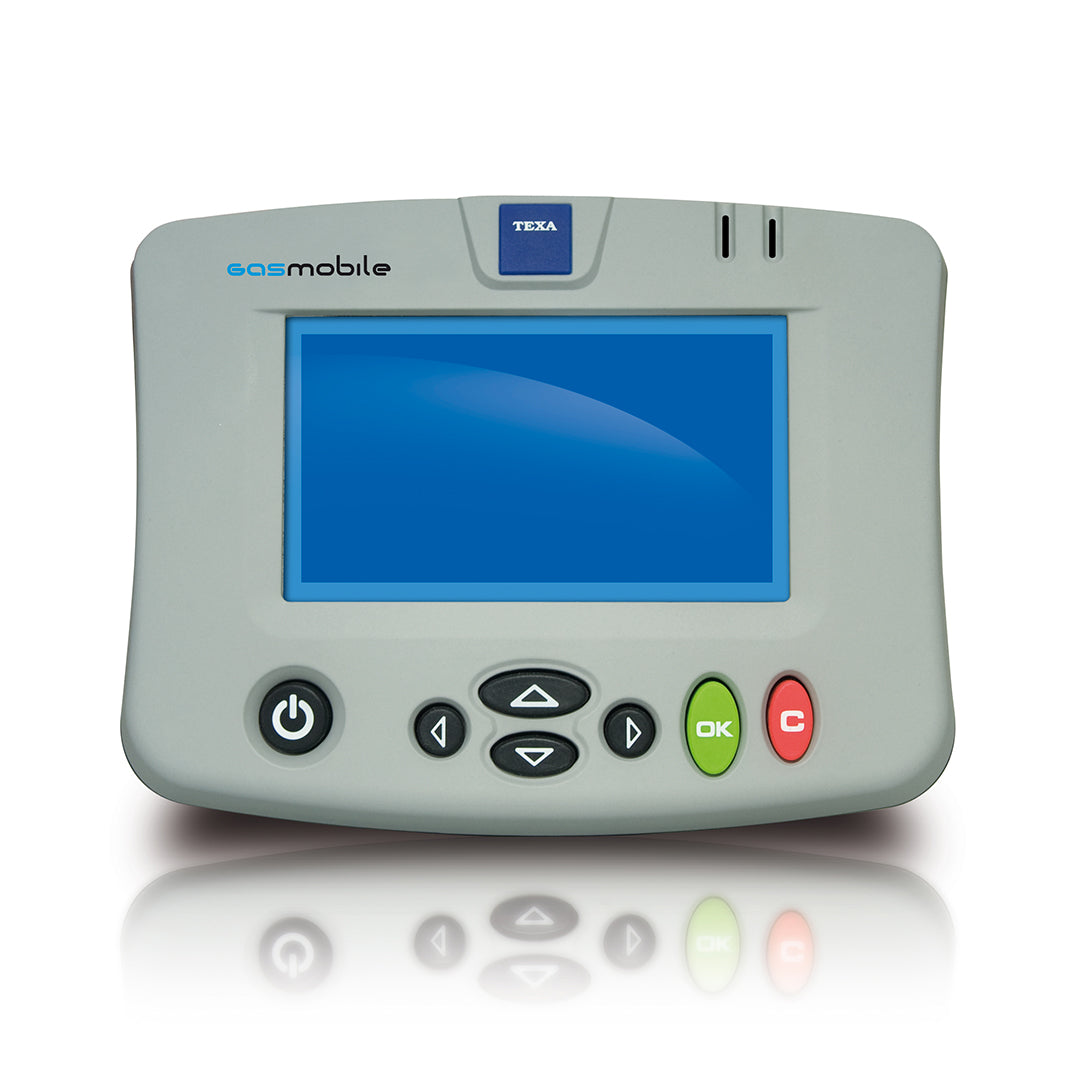

GAS Mobile is a portable, lightweight, and compact display featuring a high-visibility LCD graphic display that allows testing on all types of gasoline, diesel, and alternative fuel engines. Thanks to the integrated thermal printer on the back, emissions test reports are immediately available on paper.
Technical Specifications
PROCESSOR SYSTEM
Cortex STM32F103VX microcontroller with 72MHz max freq.
Memory 512 MBytes Flash 64 KBytes SRAM
EmbOS OPERATING SYSTEM
INPUTS/OUTPUTS
SD-card slot
PS2 (keyboard)
RJ45 serial (assistance)
Power jack for wall adapter
BATTERY PACK
Li-Ion 2S 2400 mAh, battery life
480 minutes typical (varies depending on usage)
PRINTER
Integrated low-consumption thermal printer
DISPLAY
Graphic LCD display STN (Blue&W) 240×128 dots, dimensions 170(W)x103.5(H)mm
BLUETOOTH
WT11 radio module by Bluegiga Technologies®
ACCELEROMETER
3-axis accelerometer interfaced to the processor
ENVIRONMENT
Operating temperature: 0 °C ÷ 50 °C
Charging temperature: 0 °C ÷ 45 °C
Storage temperature: -20 °C ÷ 60 °C Humidity: 10 % – 80 %
DIMENSIONS
212x162x120 mm
WEIGHT
930 g
