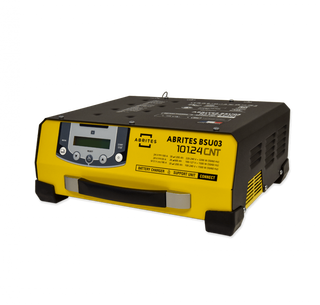

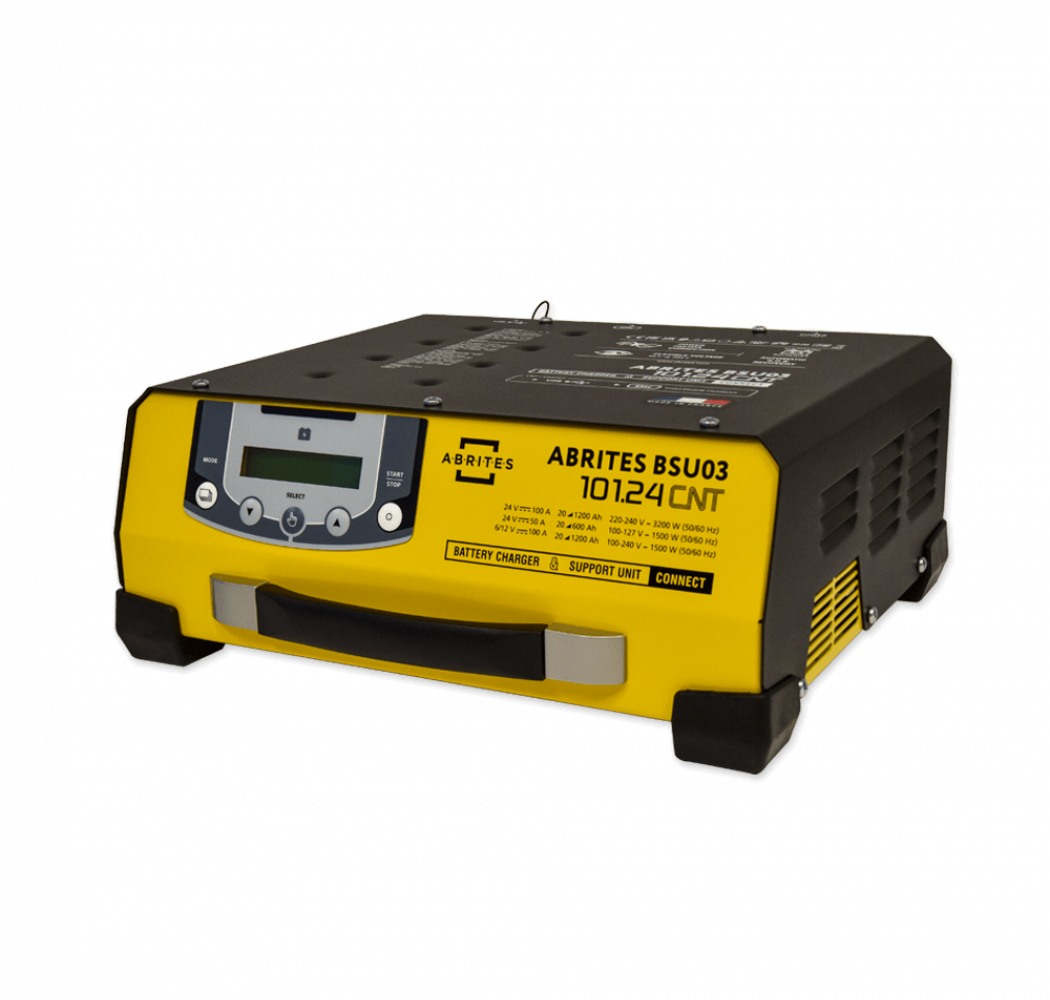

Battery Support Unit (Charger) - 101.24 CNT BSU03

The BSU03 - Battery Support Unit (Charger) - 101.24 CNT is a 100 A high power CONNECTED charger with inverter technology. It allows to keep a 6 V, 12 V and 24 V lead or lithium battery (Lithium-ion “standard” + Lithium-iron Phosphate) at a perfectly stabilized voltage during the diagnostic phases. It will deliver the best charging cycle recommended for the maintenance of the most advanced vehicles on the market.

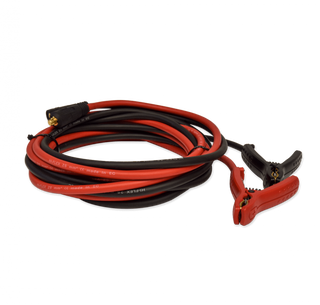

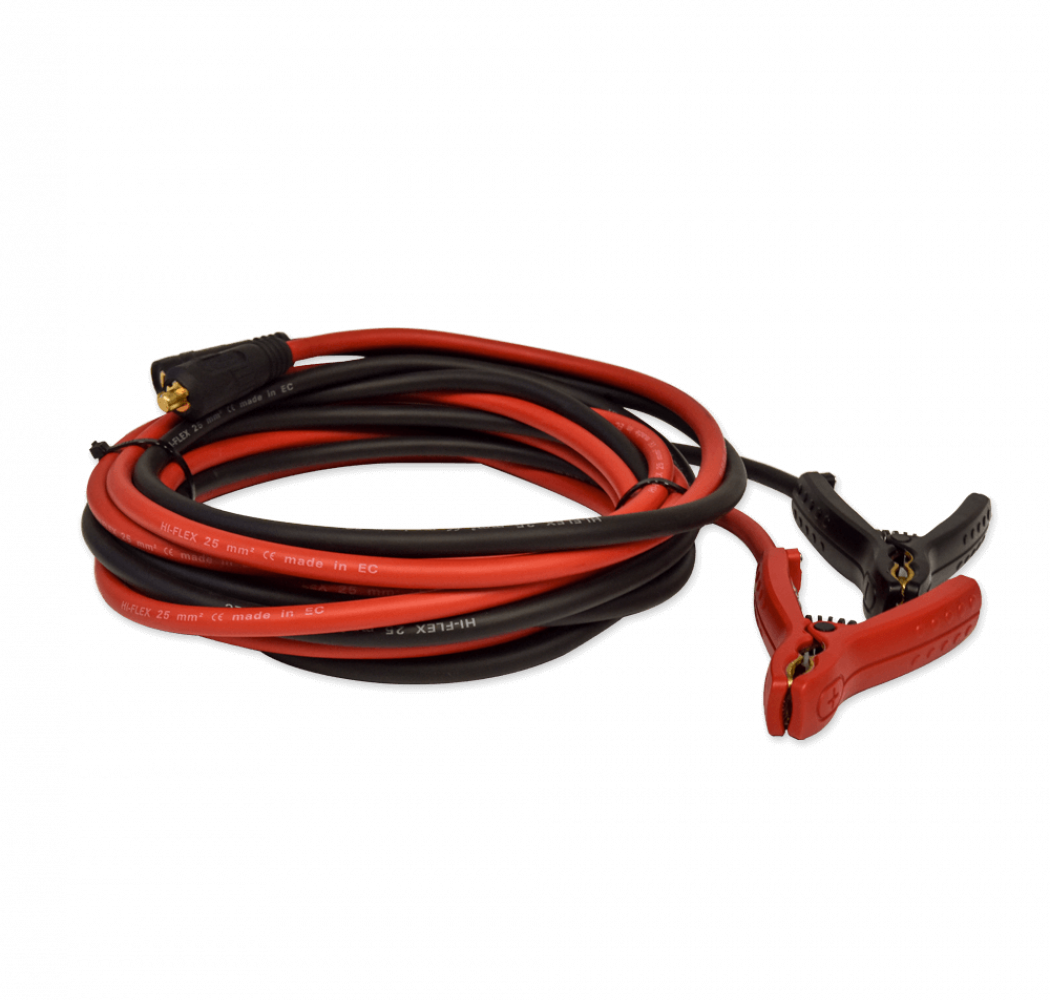

• Supplied with cables (5 m - 25 mm2)

4 OPERATING MODES

• Charge: for 6, 12 or 24 V Lead or Lithium batteries from 5 to 1200 Ah.
• Diagnostic: supports up to 100 A for 12 V or 24 V batteries in vehicles in the diagnostic phase, in maintenance workshops.
• Showroom: provides power compensation when using the electrical accessories of a demonstration vehicle. It also manages the optimal charging of the battery.
• Tester: Allows you to check the battery voltage, evaluate the starting system (starter + battery) and the condition of the vehicle’s alternator

AUTOMATIC CHARGE

• Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium batteries (Lithium-ion "standard" + Lithium-iron Phosphate).
• Specific charging curve in 8 steps (lead battery) or 9 steps (lithium-iron phosphate battery) without supervision.
• Recovers deeply discharged batteries >2 V (automatic SOS Recovery).

TECHNOLOGIES & ADVANCED FUNCTIONS

• FV Flexible Voltage, the charger operates with a supply voltage between 85 and 265 V.
• "Auto-Detect" function automatically starts a charge when a battery is connected to the charger.
• "Auto-Restart" function in the event of a power failure with memory of the settings.
• Cable inspection and calibration
• Locking, avoids the risk of improper handling, ideal for garages and exhibition halls.
• Up to 12 charging profiles available, including the Easy profile for simplified charging suitable for all lead batteries.

SAFETY

• Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system.
• Interchangeable fusible which protect against misuse.
• Temperature sensor to prevent internal electronics overheating.

ADVANCED INTUITIVITY

• Durable case with shock and vibration absorbing pads.
• Low height (13 cm) for the loader to pass under a vehicle.
• Intuitive interface available in 22 languages.

The warranty period for this hardware product is 1 year from the date of purchase.
This warranty covers defects in materials and workmanship under normal use during the warranty period.
